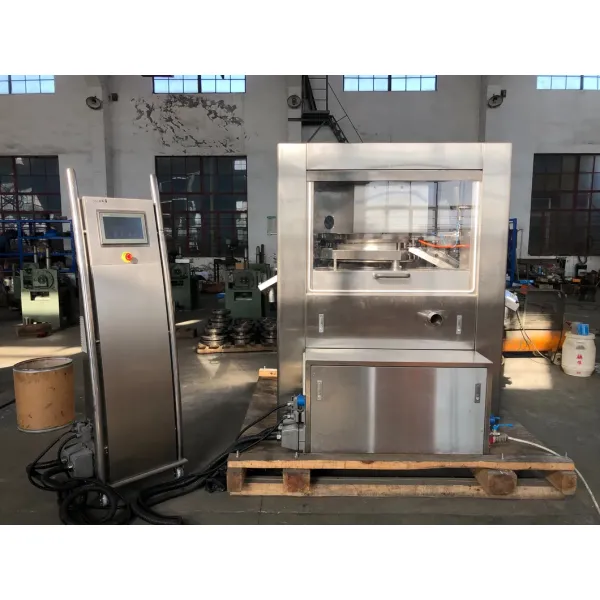

TIANHE Catalytic High Capacity High Speed Powder Press Machine for Pharmacy,Foods,Chemical
Product Description
TIANHE Catalytic High Capacity High Speed Powder Press Machine for Pharmacy,Foods,Chemical Application:
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
TIANHE Catalytic High Capacity High Speed Powder Press Machine for Pharmacy,Foods,Chemical Features:
1:High speed with large quantity punches, double press rollers,suitable for mass production.
2:Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3:Perfect tableting system,twice compression forming reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4:Compression compartment is entirely enclosed with transparent glass to prevent contamination.
5:Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
6:Tooling track adopt doubleside lifting structure, the punches are balanced stress and wear resistance.
7:High performance electrical control system, ensure each program processing precisely.
8:Automatic oil & grease central lubrication system. ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
Note:
1:GZPK730 Model adopt advanced operation system and tablet weight control system, adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without handwheel. Effective detecting and adjusting for tablet hardness and weight is achieved.
2:GZPK730 Model can record all the process parameter for each production batch, it is convenient for operator to control the machine.
Product Parameters
| Model | GZPK-51 | GZPK-63 | GZPK-75 | GZPK-81 |
| Number of Station | 51 | 63 | 75 | 81 |
| Tooling Standard | D | B | BB | BBS |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 100 |
| Max Tablet Diameter (mm) | Round Tablet | 25 | 18 | 13 | 13 |
| Irregular Tablet | 25 | 19 | 16 | 16 |
| Max Filling Depth(mm) | 20 | 18 | 15 | 15 |
| Max Tablet Thickness (mm) | 8 | 7 | 6 | 6 |
| Max Turret Speed (r/min) | 70 |
| Max Production Capacity(pcs/h) | 428400 | 529200 | 630000 | 680000 |
| Motor Power (KW) | 11 |
| Overall size (mm) | 1700*1600*1900 |
| Machine Weight (kg) | 4800 |
Detailed Photos

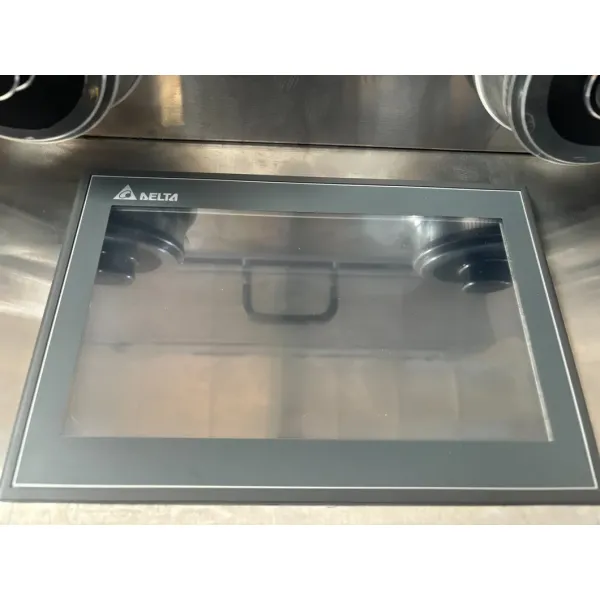

| HMI touch screen 10 inch (Delta)
(Display Chinese,English or other languages)
1. Display pressure value for each punch
2. Automatic adjusting main pressure,
pre- pressure and tablet weight
3.With 3-level management authority,product formula management.
4.CFR 21 part 11 electronic record and electronic signature function (optional)
5. Machine adapt formula management.
6.The electrical system configuration of GZPK730 is fully upgraded,Equipped with industrial computer and independent electrical cabinet.
|
 | Electrical system
1.Adopt international famous brand, such as Delta etc
2. Separated electrical control cabinet |
| 15KW main motor
|

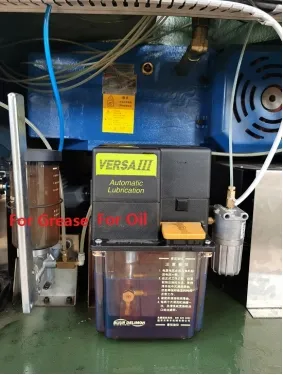

| Automatic lubrication oil &grease system
1.Lubrication oil to lubricate punches, tracks
Grease oil to lubricate shaft & bearings.
|
| Turret structure and materials - The turret adopts three part structure.
- Material use HT300& 2Cr13
- The surface of turret is covered with hardened layer so that the turret surface is wear resistant.
4.Upper punch with oil protect ring, dust proof ring
5. Lower punch with dust proof ring
6.Full closed working turret
7.Tooling track adopt double-side lifting structure,the punches are balance stress and wear resistance. |
| Force feeder system
1.Adopt double impeller type force feeder, Improve granules flow-ability and filling performance, ensure the filling precision
Stainless steel hopper (SS316L)
1. Powder level sensor
2.Adjusting valve for powder flow
3.Soft sleeve connecting hopper and force feeder (food grade silicone) |
|
Upper & lower punch protection device
1.Upper & lower punch tightness protection sensor, when the powder sticks on the punch, the machine can stop automatically
2.Servo Motor control Pressure (Ensure tablet weight difference) |
 | Tablet rejection system
|
 | Alarm System |
 | Servo Motor control Pressure (Ensure tablet weight difference) |
| Punches & dies( Customization according to customer's requirements) - Adopts TSM-Tooling standard.
- We can make it all kinds of punches and dies,such as round,irregular,shallow concave,deep concave,bevel edged,detachable,single tipped,multi tipped,chrome plated or carbide ones.
- Material(option): S7/D2,DC53,
6CrW2Si etc.
|
Certifications
Packaging & Shipping
1. Wooden packaging meets export packaging standards.
2. Packaging is free of charge.
3. The delivery time is 15-45 working days.
4.The transportation methods can be SEA,AIR and EXPRESS. Samples
Our Exhibition
Company Profile
![TIANHE Catalytic High Capacity High Speed Powder Press Machine for Pharmacy,Foods,Chemical]()
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years and exported over 70 countries.
We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
